Upright Guards

Upright Guards are protective components designed to shield individual uprights from damage caused by forklifts or other material handling equipment. By preventing issues such as denting or bending — which can compromise the load-bearing capacity of the rack — these guards help preserve structural integrity, extend rack lifespan, reduce maintenance costs, and improve overall safety.

  • How are they Useful?
    • In facilities with frequent forklift or other equipment used, particularly in high-impact areas, Upright Guards are highly recommended. They not only protect new installations but also help prevent further damage to uprights that may already have minor scratches, reducing long-term risks and repair expenses.
    • Please note that these guards do not protect damaged uprights at all. If your uprights are damaged, you must unload all your goods, clear the area and immediately contact your supplier for inspection and replacement.

L-Shaped Upright Guard

₹1,817.00

Add to Cart

U-Shaped Upright Guard

₹1,065.00

Add to Cart
  • Where are they Installed?
    • Upright Guards are positioned at high-risk zones where collisions are most likely to occur. Typically, one guard per upright is used to cover all exposed points. The exact number required depends on the bay configuration and the intensity of equipment movement in that area, ensuring both safety and durability.
  • Types of Upright Guards:

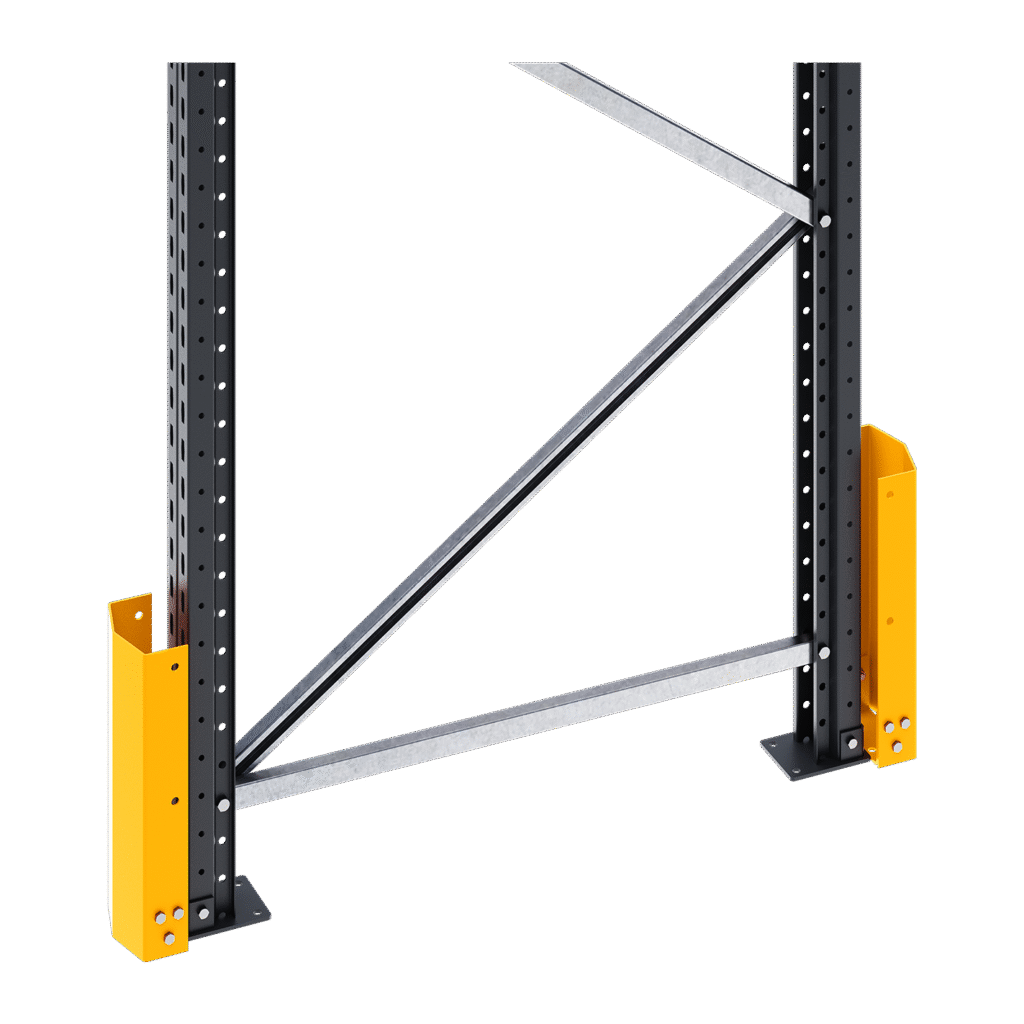

    • U-Shaped Upright Guard — Suitable when the first beam level is positioned at 200 mm or higher. This type of guard is installed offset from the upright so that the load beam does not interfere with the guard.

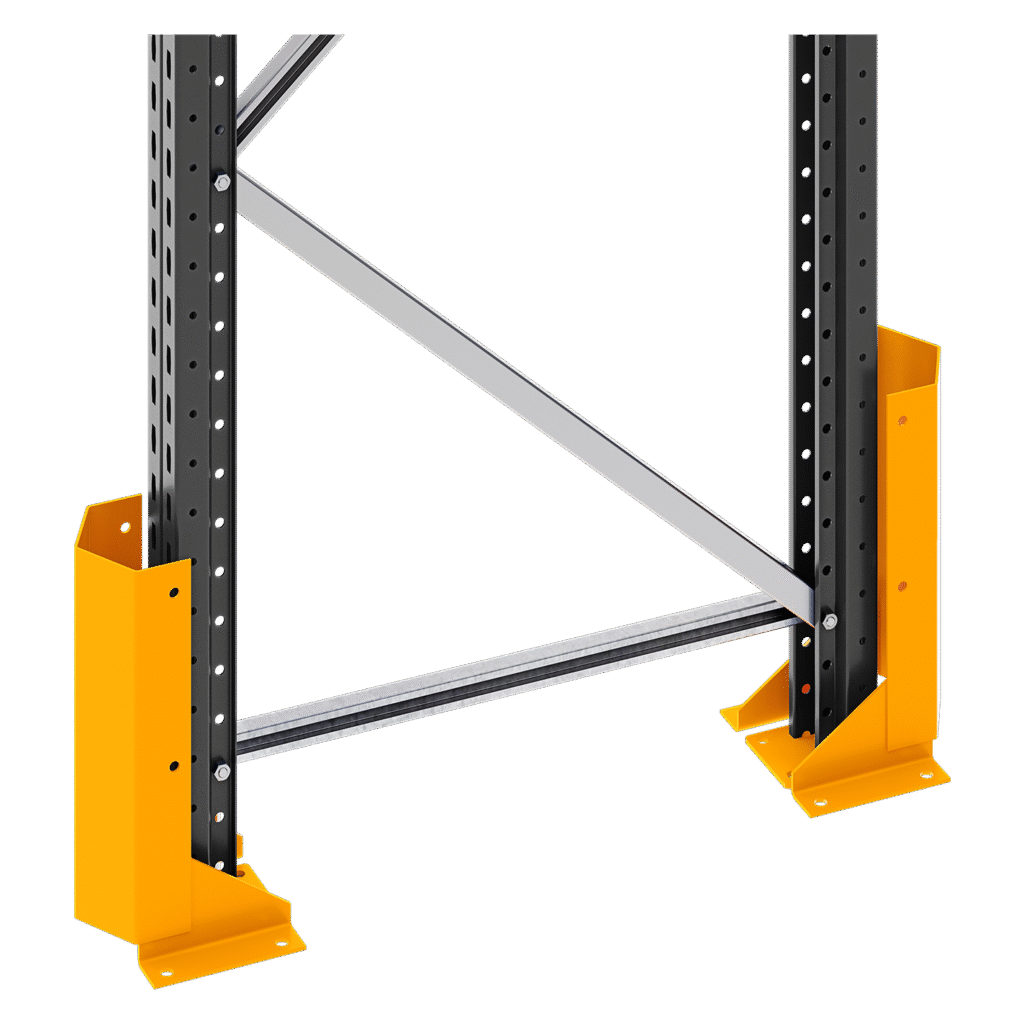

    • L-Shaped Upright Guard — Suitable when the first beam level is placed at 400mm or higher. This guard is installed flush with the upright, meaning the load beam cannot pass through that guard and must be positioned above 400mm only.
  • How Many Upright Guards do you need?
    • Each frame requires 2 Upright Guards. Therefore, 1Main Bay requires 4 Upright Guards, while 1 Add-on Bay requires 2.
    • For exposed front-facing areas where handling equipment is most active, Upright Guards cannot be used; in these zones, Frame Guards are recommended to provide effective protection against collisions.
  • What will I get in my order?
    • U-Shaped Upright Guard — Supplied in an unassembled form, along with all necessary components and fasteners for assembly. The anchoring fasteners are provided in exact quantities required, with no extras included. An instruction manual will guide you through the assembly process. In addition, you will receive a warranty notice, a user manual, a safety and inspection manual, and a physical copy of your invoice.
    • L-Shaped Upright Guard — Supplied as a fully assembled unit. Anchoring fasteners are provided in exact required quantities, with no extras included. An instruction manual will be provided to assist with installation. A warranty notice, a user manual, a safety and inspection manual, and a physical copy of your invoice are also included.
    • Installation support — Should you require assistance, our team is available to guide you through the installation process. Simply contact us, and we will respond at the earliest convenience.
  • What is not included in my order?
    • Please note that no PPE or safety gear is included with this product. Tools required for assembly, such as hammers or spanners, are not provided. Any components or accessories shown in the product images are for illustration purposes only and are not part of the order. Items not specifically listed above are not included.
    • Additionally, when placing an order for racks through the configurator, upright guards
      are not automatically provided. They must be added to your order separately.
  • The installation of a single guard typically requires two people and takes approximately 10 minutes. With experience, the installation time can be reduced further.
